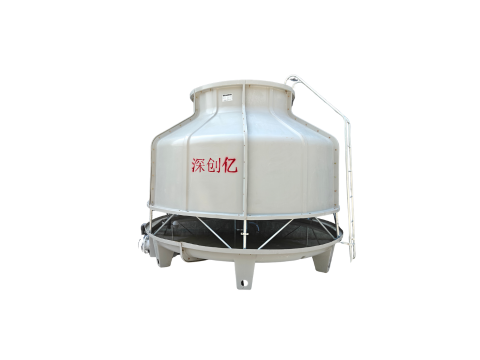

Cooling water tower

Product features：

The heat dissipation film adopts a curved diagonal pattern, effectively extending the contact and heat exchange between the circulating water and the cooling water inside the tower, making the airflow inside the tower more reasonable and reducing the air resistance to a lower level. Meanwhile, the fan uses a large tensile-shaped fan blade and a long space, which makes the fan operation more stable, thereby reducing noise and greatly improving the cooling energy.

The shell of the cooling tower is made of high-quality high-strength fiberglass reinforced plastic, which can resist natural factors and chemical erosion, remaining as good as new over time. All steel structures have undergone hot-dip galvanizing treatment, which can resist oxidation and corrosion, making the product more solid and durable. Accessories and choices.

Motor: Fully enclosed waterproof cooling dedicated motor.

Standard transparent polyethylene (PVC) has a higher temperature resistance of 54℃.

Recycled polyethylene (PVC) has a higher temperature resistance of 65℃.

Milky white polyethylene propylene, up to 90℃;

Warranty service: For all "Shenchuangyi" brand cooling towers sold, if the damage is not caused by human factors, the damaged parts will be replaced free of charge after being appraised by the technicians of our company and the agent. If the damage is caused by human factors, the cost of the item will be refunded. This product is covered by a 18-month free warranty from the date of sale. (The motor lasts for one year.

Cooling tower Installation instructions

First, select the installation site：

Cooling towers should be installed on buildings with sufficient load-bearing capacity (or on the ground), with good ventilation. The minimum distance between the air inlet of the cooling tower and the parallel building should not be less than 1.5 times the outer diameter of the tower body to ensure unobstructed entry of fresh air into the tower and effectively prevent the backflow of hot air discharged from cooling. Installation in places where hot air is generated and dust is flying should be avoided as much as possible. Otherwise, other measures should be taken.

Preparation for starting the cooling tower：

Open the sewage raft door of the water pan to wash all components of the tower body and clean the water basin.

Check whether each operating part is flexible and whether the gap between the fan blades and the tower body is uniform.

Adjust the float raft so that the water basin level is 20mm below the 湓 water outlet.

Design operating condition parameters：

The inlet water temperature -T1=37℃

The outlet water temperature -T2=32℃

Wet bulb temperature -WBT=27℃

The water temperature drop -△TS=5℃

Atmospheric pressure -P=99400Pa
