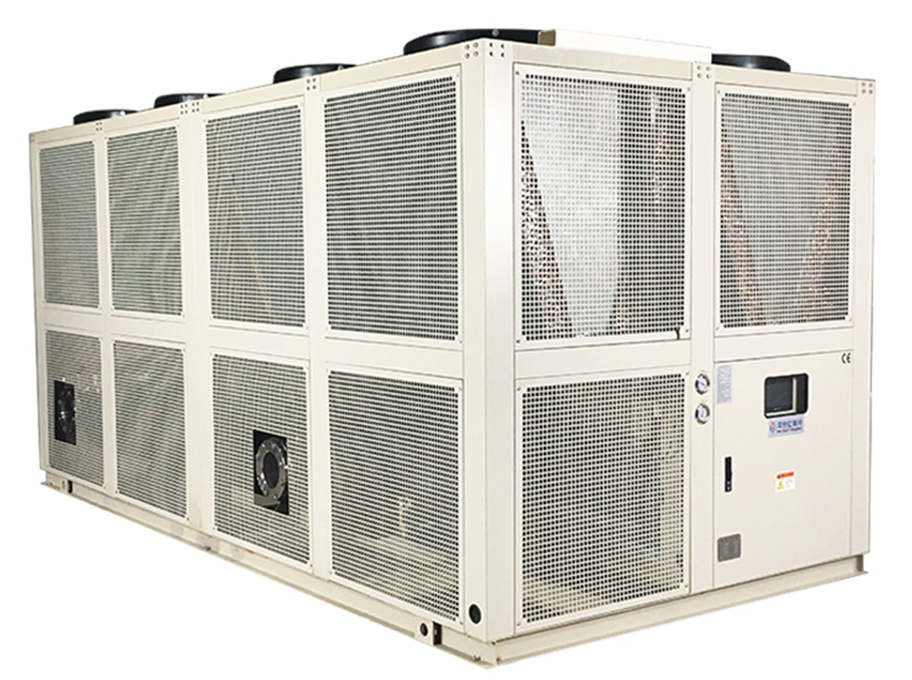

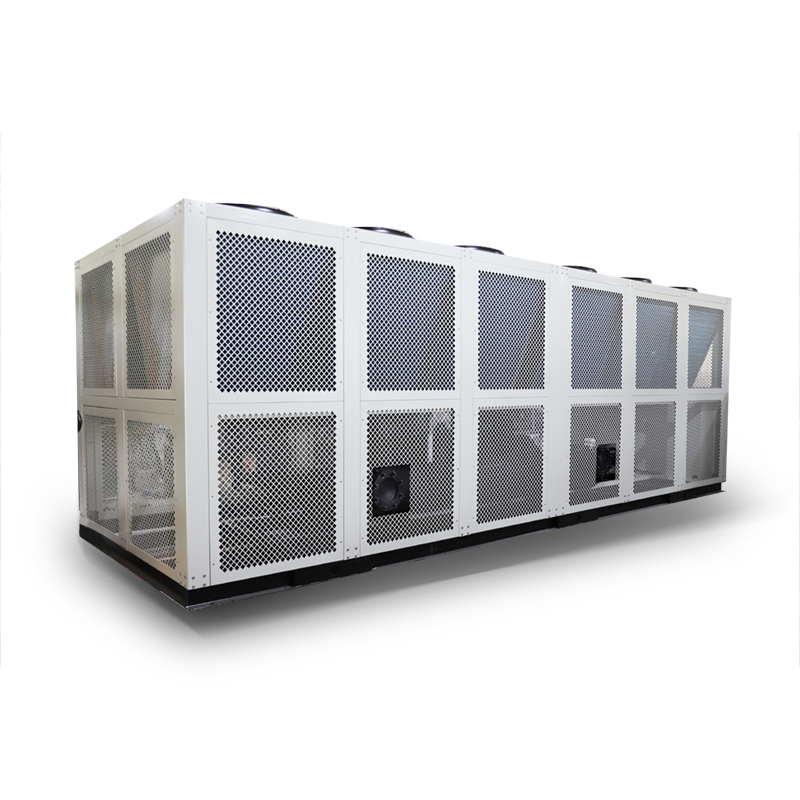

Air-cooled screw industrial chiller

Shenzhen Shenchuangyi air-cooled screw industrial chiller adopts internationally renowned brand (Taiwan Hanbell, Bitzer) screw compressors and is equipped with condensers made of high-quality and high-efficiency copper tubes. The evaporator and world-renowned brand components make the unit more compact, low-noise, energy-efficient and long-lasting. With advantages such as simple operation, its elegant appearance design and stable high-efficiency quality, it stands out among similar products!

Compressor:

The compressor adopts an international brand, a new type of high-efficiency screw-type rotary compressor, which has an energy efficiency 20% to 30% higher than that of ordinary compressors.

It has also obtained patents in many countries in Europe and America and successfully passed the ISO9001:2000 international quality system certification.

● High-efficiency 5:6 patented asymmetric helical tooth profile.

Capacity control can adopt a four-stage (-75% - 50% - 25%) or three-stage (-66% - 33%) and stepless control system.

The design adopts A combination of 11 bearings and an A-type axial thrust balance drum, significantly increasing the bearing life by 2.5 to 3.5 times.

It adopts a special channel design with high-efficiency silicon steel sheets and is equipped with an internal and external omnidirectional cooling flow, enabling the compressor motor to achieve higher efficiency under any load.

The unique built-in hydraulic system ensures that the compressor maintains better lubrication without the need for an oil pump. The oil separation adopts a double-layer filtration method, providing excellent oil filtration performance and allowing the heat exchanger to exert greater capacity.

● Multiple refrigerants are available for selection. In addition to R22 refrigerant, environmentally friendly refrigerants such as R134a and R407c can also be selected.

● A full range of compressor capacity ratios (V1=2.2/2.6/3.0/3.5) are available for selection, which can effectively avoid additional energy consumption caused by compressor overload or insufficient compressor pressure.

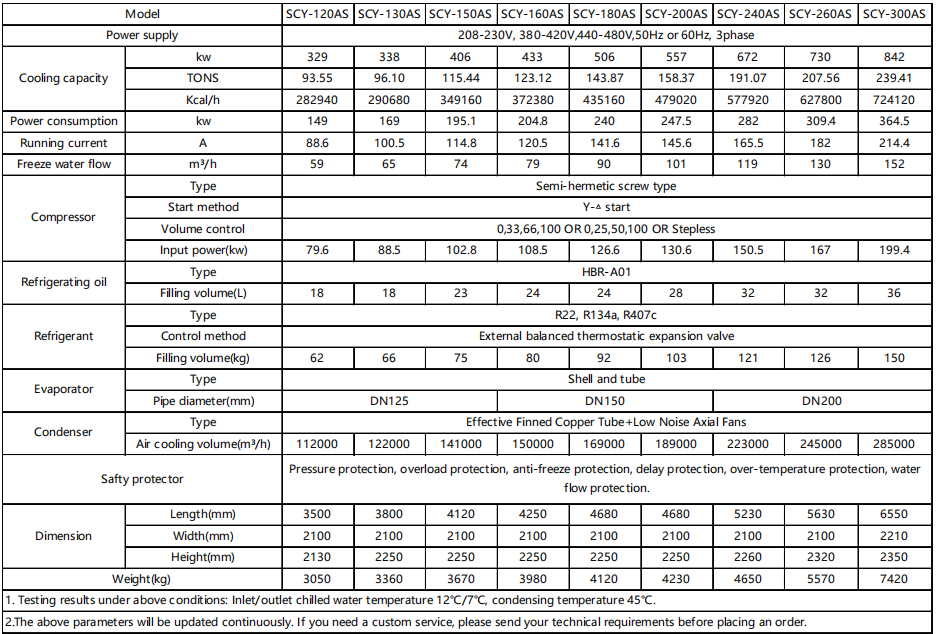

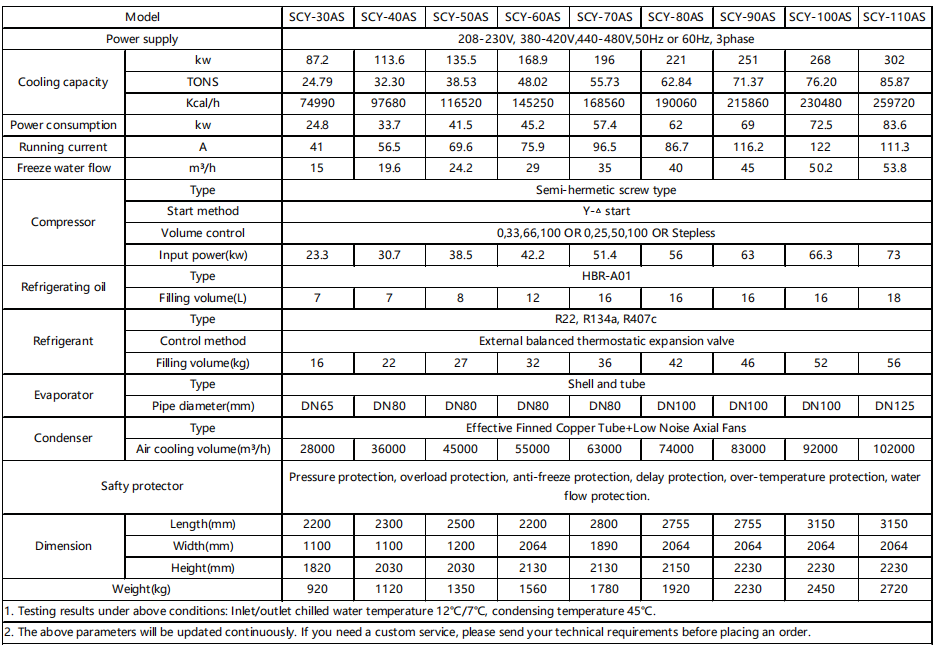

Performance Parameter Table of Air-cooled Screw Industrial Chiller:
